[Product name] : ZTB directly buried sleeve compensator
[Product alias] : directly buried sleeve compensator,sleeve compensation connector
[Product Specification] : [DN32mm-DN4000mm]
[Product pressure] : 0.25-2.5MPa
[Product Certification] : ISO9001-2008
[ Scope of application ] : [ Weak acid, weak base, weak corrosion class, oil, hot water, cold water, etc. ]
[Material] : Carbon steel, ductile iron, stainless steel.
[Product color] : Blue, can be adjusted according to customer requirements.
[Operating temperature] : -40 degrees to 80 degrees
Product feature:
The sleeve compensator adopts advanced sealing structure and sealing material, which is suitable for hot water, steam and grease medium. It can compensate the thermal expansion by sliding the sleeve through the sliding movement of the external sleeve. It has the characteristics of reasonable structure, reliable, long service life, no leakage, convenient installation and maintenance, and wide application range. At the same time, it is convenient for pipeline design, installation and construction, and can reduce the setting of fixed support. The sleeve compensator has a telescopic core tube in both directions of the outer sleeve of the ordinary type, which compensates twice of the ordinary type of grain, and is used for two-way compensation, reducing the length size and cost of the two ordinary types.
Product advantage:
Sleeve compensator has double insurance effect, this product will bellows compensator integrated, that is, when the bellows compensator outside the increase of a mechanical seal, bellows once the problem, the compensator can still work normally. Reliable performance, improve bending ability. The bellows compensator works more reliably because of the added mechanical seal, which insulates the bellows inside from harmful substances especially chloride ions. Meanwhile, the mechanical seal increases the steering function of the movable end and improves the bending resistance.
Innovative sleeve compensator structure:
It is mainly composed of sleeve (core tube), shell, sealing material, etc. It is used to compensate the axial expansion of the pipeline and the axial rotation at any Angle. It is suitable for hot water, steam and grease medium with small volume and large amount of compensation. It can compensate the thermal expansion by sliding the sleeve through the sliding motion of the external sleeve.
The inner sleeve of the sleeve compensator is connected with the pipeline, and the principle and structure of high performance self-pressure dynamic seal are adopted. It can slide freely in the shell with the expansion of the pipeline, and can adapt to the sealing requirements of any pipeline. The new synthetic material is used to seal between the shell and the inner sleeve, which is resistant to high temperature, anti-corrosion and anti-aging. The suitable temperature is -40 to 150, or up to 350 in special cases. It can not only ensure the axial sliding, but also ensure that the medium in the tube does not leak.
Innovative sleeve compensator application field:

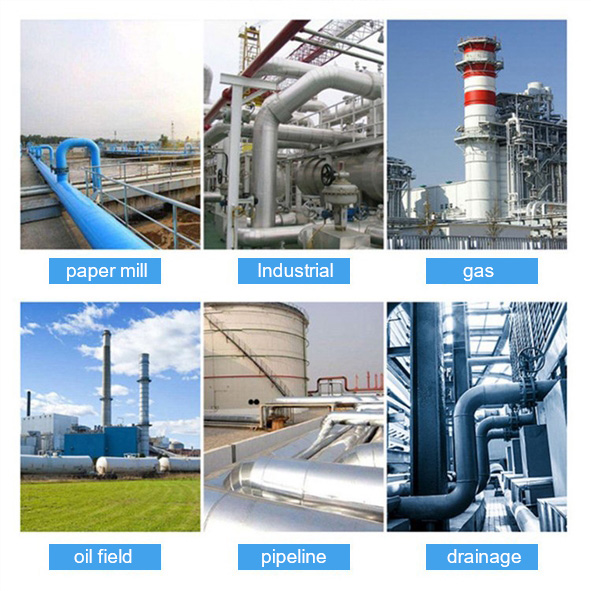

Sleeve compensator can be widely used in chemical industry, petroleum, thermal power, metallurgy, urban central heating and heating pipe network, trench and high erected pipeline.
The following product data can also be processed according to user requirements or according to the site construction conditions:
Nominal diameter
DN |
Inner diameter of core tube
D |
Outer diameter of core tube
D2 |
Flange outside diameter
D3 |
Net packing chamber length
(mm) |
Compensating quantity
△L max |
Mounting length
Lmax |
Friction force
Pc(N) 1.6MPa时 |
Weight
(kg) |
15
|
14
|
18
|
95
|
36
|
150
|
640
|
4.69
|
|
20
|
18
|
23
|
105
|
36
|
150
|
640
|
5.62
|
|
25
|
24
|
30
|
115
|
36
|
150
|
640
|
1069
|
7.38
|
32
|
30
|
36
|
120
|
36
|
150
|
640
|
1311
|
8.38
|
(36)
|
36
|
43
|
125
|
36
|
200
|
740
|
1415
|
10.45
|
40
|
41
|
48
|
130
|
36
|
200
|
740
|
1518
|
11.62
|
50
|
47
|
55
|
160
|
56
|
200
|
760
|
1932
|
16.42
|
65
|
63
|
71
|
180
|
56
|
200
|
760
|
2485
|
21.14
|
(70)
|
65
|
74
|
190
|
56
|
200
|
760
|
2588
|
24.19
|
80
|
78
|
87
|
195
|
56
|
200
|
760
|
3002
|
26.92
|
100
|
94
|
106
|
215
|
56
|
250
|
895
|
6271
|
41.80
|
125
|
117
|
131
|
245
|
56
|
250
|
895
|
7750
|
52.02
|
150
|
143
|
157
|
280
|
56
|
250
|
895
|
9288
|
69.16
|
(175)
|
176
|
192
|
335
|
70
|
250
|
920
|
13251
|
94.74
|
200
|
201
|
217
|
335
|
70
|
300
|
1020
|
14977
|
106.28
|
(225)
|
225
|
242
|
390
|
70
|
300
|
1035
|
19167
|
136.10
|
250
|
253
|
270
|
390
|
70
|
350
|
1135
|
21297
|
142.74
|
300
|
303
|
322
|
440
|
91
|
350
|
1155
|
25399
|
175.44
|
350
|
353
|
373
|
500
|
91
|
400
|
1360
|
29421
|
262.66
|
400
|
404
|
426
|
565
|
91
|
400
|
1360
|
33286
|
288.05
|
450
|
455
|
478
|
615
|
91
|
400
|
1360
|
33852
|
313.43
|
500
|
505
|
528
|
670
|
91
|
450
|
1460
|
36234
|
377.82
|
600
|
603
|
630
|
780
|
91
|
450
|
1480
|
43205
|
531.64
|
700
|
693
|
720
|
880
|
91
|
450
|
1525
|
61771
|
629.71
|
800
|
792
|
820
|
995
|
112
|
500
|
1655
|
70398
|
880.22
|
900
|
890
|
920
|
1095
|
112
|
500
|
1655
|
79025
|
986.36
|
1000
|
990
|
1020
|
1195
|
122
|
500
|
1655
|
87653
|
1087.72
|
